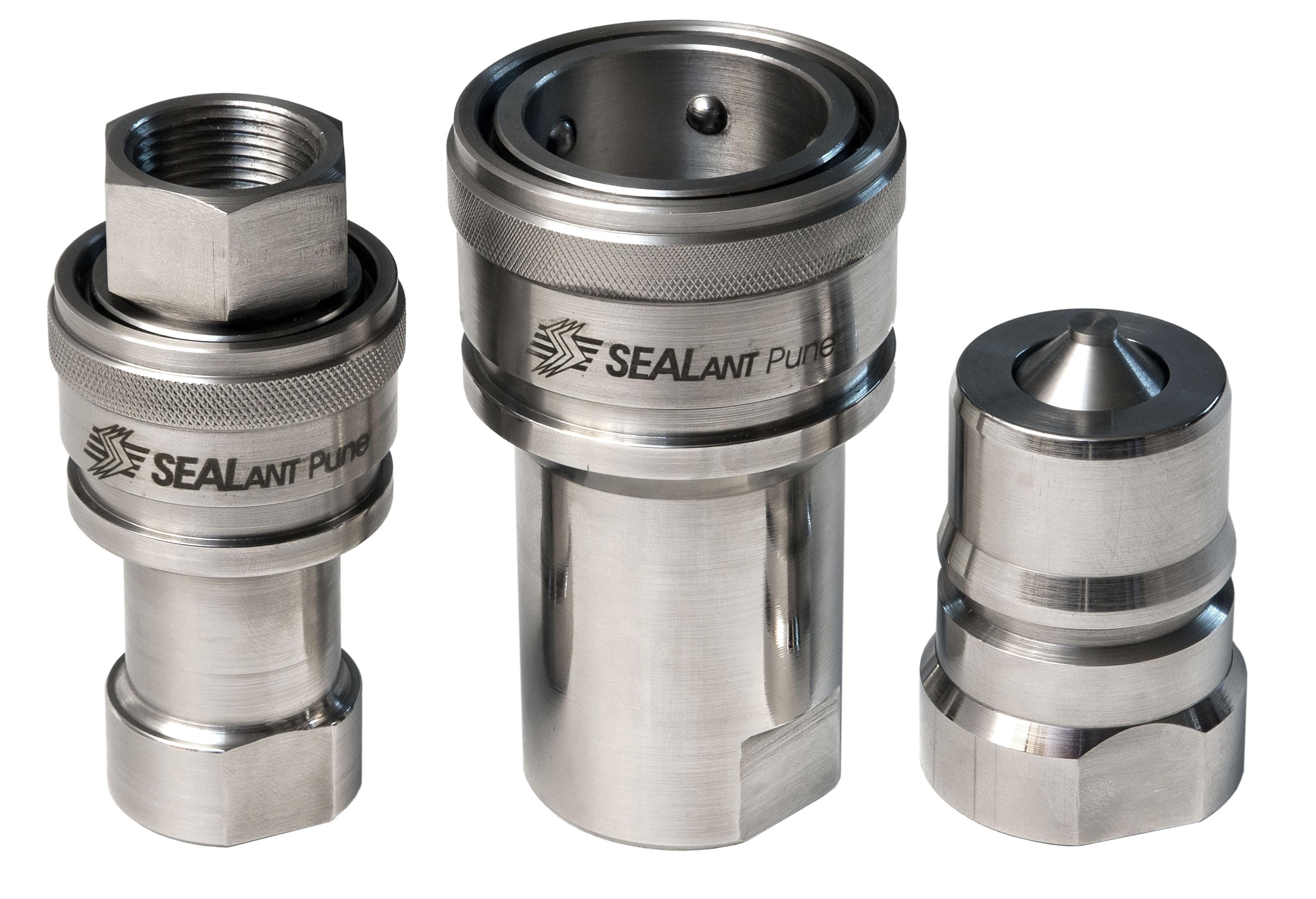

Double Shut Off Coupling have automatic shut off valve at both ends; in socket & plug also. So on disconnection both socket & plug are sealed instantly. This type is widely used on Hydraulic lines carrying oils, water, chemicals & petroleum products. Material & seal are selected to suit the type of fluid. Our company is one of the leading manufacturers and the supplier of the single, double shut off coupling and all kinds of couplings and the connectors.
- Value - Automatic shut off valve in both, socket & plug
- End Connection - F - Female threads
- Seal - Nitrile. Viton. Teflon - available on request.
- Lock System - Ball lock or pin lock.
- Material - Stainless Steel, Brass, Carbon Steel
Application :
Chemical plants, Refineries, Ships.

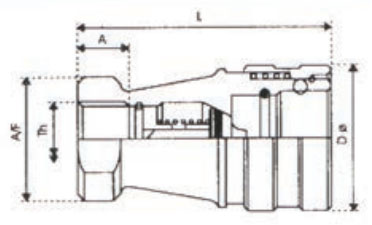

| SIZE | L | D ∅ | A/F | TH | A |
|---|---|---|---|---|---|
| 26-S | 55 | 28 | 19 | 1/4'' * 19 | 13 |
| 29-S | 65 | 35 | 21 | 3/8'' * 19 | 14 |
| 212-S | 73 | 45 | 29 | 1/2'' * 14 | 17 |
| 219-S | 88 | 55 | 35 | 3/4'' * 14 | 17 |
| 225-S | 102 | 65 | 41 | 1'' * 11 | 20 |
| 230-S | 115 | 79 | 54 | 1-1/4'' * 11 | 24 |
| 238-S | 125 | 89 | 63 | 1-1/2'' * 11 | 25 |
| 250-S | 132 | 109 | 77 | 2'' * 11 | 27 |

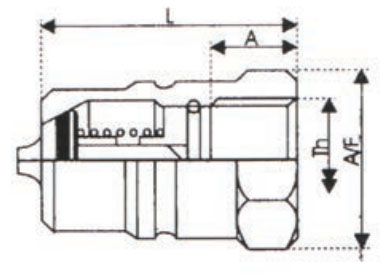

| SIZE | L | A/F | TH | A |
|---|---|---|---|---|
| 26-P | 36 | 17 | 1/4'' * 19 | 13 |
| 29-P | 40 | 21 | 3/8'' * 19 | 13 |
| 212-P | 44 | 30 | 1/2'' * 14 | 15 |
| 219-P | 52 | 35 | 3/4'' * 14 | 17 |
| 225-P | 62 | 42 | 1'' * 11 | 20 |
| 230-P | 70 | 54 | 1-1/4'' * 11 | 24 |
| 238-P | 75 | 63 | 1-1/2'' * 11 | 24 |
| 250-P | 80 | 77 | 2'' * 11 | 27 |
